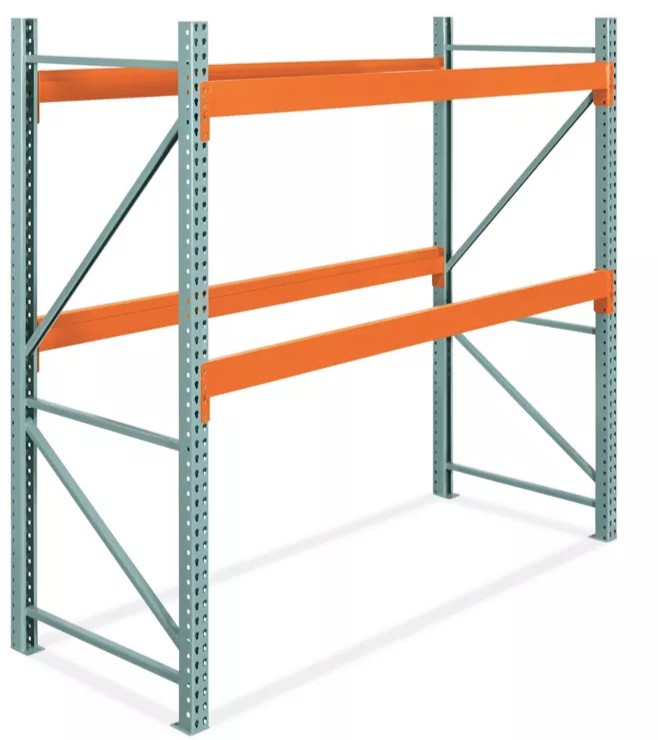

Heavy-Duty Pallet Rack Starter Unit – 96 x 42 x 96″

Highest capacity storage for bulky machinery, large IBC tanks and your heaviest pallets.

interlake

Highest capacity storage for bulky machinery, large IBC tanks and your heaviest pallets.
  • Built tough for machine shops, manufacturing plants and industrial facilities.
  • Boltless assembly. Beams lock into place and adjust in 2″ increments.
  • Welded 14-gauge steel frame. 16-gauge steel beams.
  • Includes 2 upright frames and 4 beams.



Starter Units

  • Built tough for machine shops, manufacturing plants and industrial facilities.
  • Boltless assembly. Beams lock into place and adjust in 2″ increments.
  • Welded 14-gauge steel frame. 16-gauge steel beams.
  • Includes 2 upright frames and 4 beams.

Add-on Units Heavy-Duty Pallet Rack Starter Unit – 96 x 42 x 96″

  • Extend racking to increase storage space horizontally.
  • Includes 1 upright frame and 4 beams.
Pallet Racks
Chat on WhatsApp
Contact Us
Category: Tags: , , Brand:

Description

Heavy-Duty Pallet Rack Starter Unit – 96 x 42 x 96″

SHIPMENT – SPECIAL HANDLING:

  • Will not fit on standard liftgate.
  • Must be removed from shipping carrier with a forklift or other suitable lifting device.
    • Note: Other items on the same order may also be impacted.

DIMENSIONS:

  • Outside Width: Add 6″ to listed dimensions.
  • Uprights:
    • Post: 3 x 3″ (W x D)
    • Foot Plate: 3 x 4 1/2″ (W x D)
  • Beams:
    • Usable: 96 x 2 3/4 x 5″ (W x D x H)
      • Overall Beam Width: Add 3″ to listed dimensions.
    • Step: 1 5/8″
    • Ledge: 1″
    • Slotted at 1″ centers on ledge.

FEATURES:

  • Uprights: Teardrop design
  • Beams: 4-Rivet connection
    • Automatically set & lock into the uprights.

COMPATIBILITY:

  • Works with H-3720, H-3721 & H-4904 Steel Rack Protectors.
  • 42″ Deep Pallet Racks: Work with H-4905 & H-4906 End of Rack Protectors.
  • Common Pallet Sizes:
    • Recommendations are for 42″ and 48″ deep Pallet Racks.
Pallet Rack Width Qty/Pallet Size
96″ (2) 48 x 40″ Standard GMA
108″ (2) 48 x 48″ Drum Pallets
120″ (1) 48 x 40″ Standard GMA & (1) 72″ Long Pallet
OR
(3) 36″ Wide Pallets
144″ (3) 48 x 40″ Standard GMA
OR
(2) 48 x 40″ Standard GMA & (1) 48 x 48″ Drum Pallet
OR
(1) 48 x 40″ Standard GMA & (1) 96″ Long Pallet
OR
(1) 120″ Long Pallet

CAPACITY:

  • Must use at least 2 beam levels per rack unit.
  • All capacities listed are based on evenly distributed loads.
  • Upright Frame Capacities:
Distance Between Levels LB Cap.
< or Equal to 36″ 27,600
42″ 25,900
48″ 23,900
54″ 21,900
60″ 19,800
66″ 17,700
72″ 15,700
78″ 13,700
84″ 12,000
90″ 10,600
96″ 9,400
102″ 8,400
108″ 7,500
114″ 6,800
120″ 6,100

USAGE:

  • Units are not stackable.
  • Racks are for non-seismic applications.
  • Recommended to anchor unit to the ground properly.
  • SPECIFICATIONS METRIC IMPERIAL
    DIMENSIONS W x D x H 244 x 107 x 244 cm 96 x 42 x 96″
    BEAM HEIGHT 13 cm 5″
    BEAM CAPACITY (WEIGHT/PAIR) 3,084 kg 6,800 lbs.
    WEIGHT 92 kg 203 lbs.
